ASTM A36 SS400 Rolled Steel Section H Beam Steel Sections For Building

  • ASTM A36 SS400 Rolled Steel Section H Beam Steel Sections For Building
  • ASTM A36 SS400 Rolled Steel Section H Beam Steel Sections For Building
  • ASTM A36 SS400 Rolled Steel Section H Beam Steel Sections For Building
  • ASTM A36 SS400 Rolled Steel Section H Beam Steel Sections For Building
  • ASTM A36 SS400 Rolled Steel Section H Beam Steel Sections For Building
Place of Origin China
Brand Name ANSTEEL
Certification API 5L,ISO9001,SGS,BV,CCIC
Model Number Q235 Q345
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Seaworthy Packing For Exporting
Delivery Time 7-10 days
Payment Terms L/C, T/T, Western Union
Supply Ability 50000 Tons/Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Delivery Time 7-10 Days Package Seaworthy Standard Package
MOQ 1 Ton Technology Hot Rolled
Service 24 Hours Online Material Q235/Q345/SS400/ST37-2/ST52/Q420/Q460/S235JR/S275
Highlight

SS400 Rolled Steel Section

,

ASTM Rolled Steel Section

,

A36 H Beam Steel
Leave a Message
Product Description

ASTM A36 SS400 Hot Rolled H-beam Steel of Rolled Steel Section used for Building



Product Description

Ordinary beams, light beams, because the section size are relatively high, narrow, reason of section moment of inertia of the sleeve of the two main difference is bigger, therefore, generally can only be applied directly to the bending in its web plane of the component or its lattice stress components.
On axial compression member or perpendicular to the plane and curved web member all should not be used, which makes its on the application range is very limited.
Beams should be used according to the design requirements of the drawings.


H Beam Specification
size
w/m
size
w/m
size
w/m
100*50*5*7
9.54
250*255*14*14
82.2
400*400*13*21
172
100*100*6*8
17.2
294*200*8*12
57.3
400*408*21*21
197
125*60*6*8
13.3
300*150*6.5*9
37.3
414*405*18*28
233
125*125*6.5*9
23.8
294*302*12*12
85
440*300*11*18
124
148*100*6*9
21.4
300*300*10*15
94.5
446*199*7*11
66.7
150*75*5*7
14.3
300*305*15*15
106
450*200*9*14
76.5
150*150*7*10
31.9
338*351*13*13
106
482*300*11*15
115
175*90*5*8
18.2
340*250*9*14
79.7
488*300*11*18
129
175*175*7.5*11
40.3
344*354*16*16
131
496*199*9*14
79.5
194*150*6*9
31.2
346*174*6*9
41.8
500*200*10*16
89.6
198*99*4.5*7
18.5
350*175*7*11
50
582*300*12*17
137
200*100*5.5*8
21.7
344*348*10*16
115
588*300*12*20
151
200*200*8*12
50.5
350*350*12*19
137
596*199*10*15
95.1
200*204*12*12
72.28
388*402*15*15
141
600*200*11*17
106
244*175*7*11
44.1
390*300*10*16
107
700*300*13*24
185
244*252*11*11
64.4
394*398*11*18
147
792*300*14*22
191
248*124*5*8
25.8
400*150*8*13
55.8
800*300*14*26
210
250*125*6*9
29.7
396*199*7*11
56.7
900*300*16*28
243
250*250*9*14
72.4
400*200*8*13
66

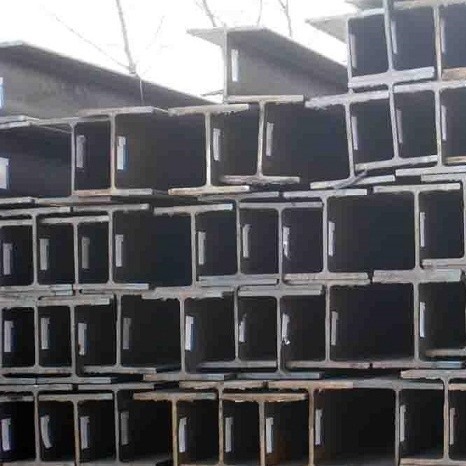

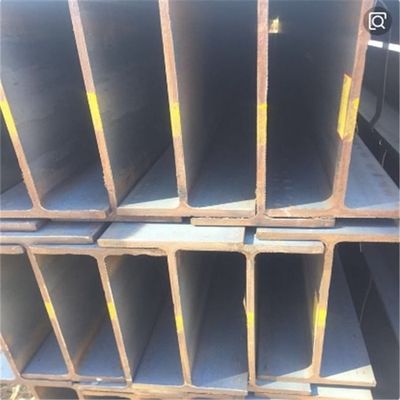

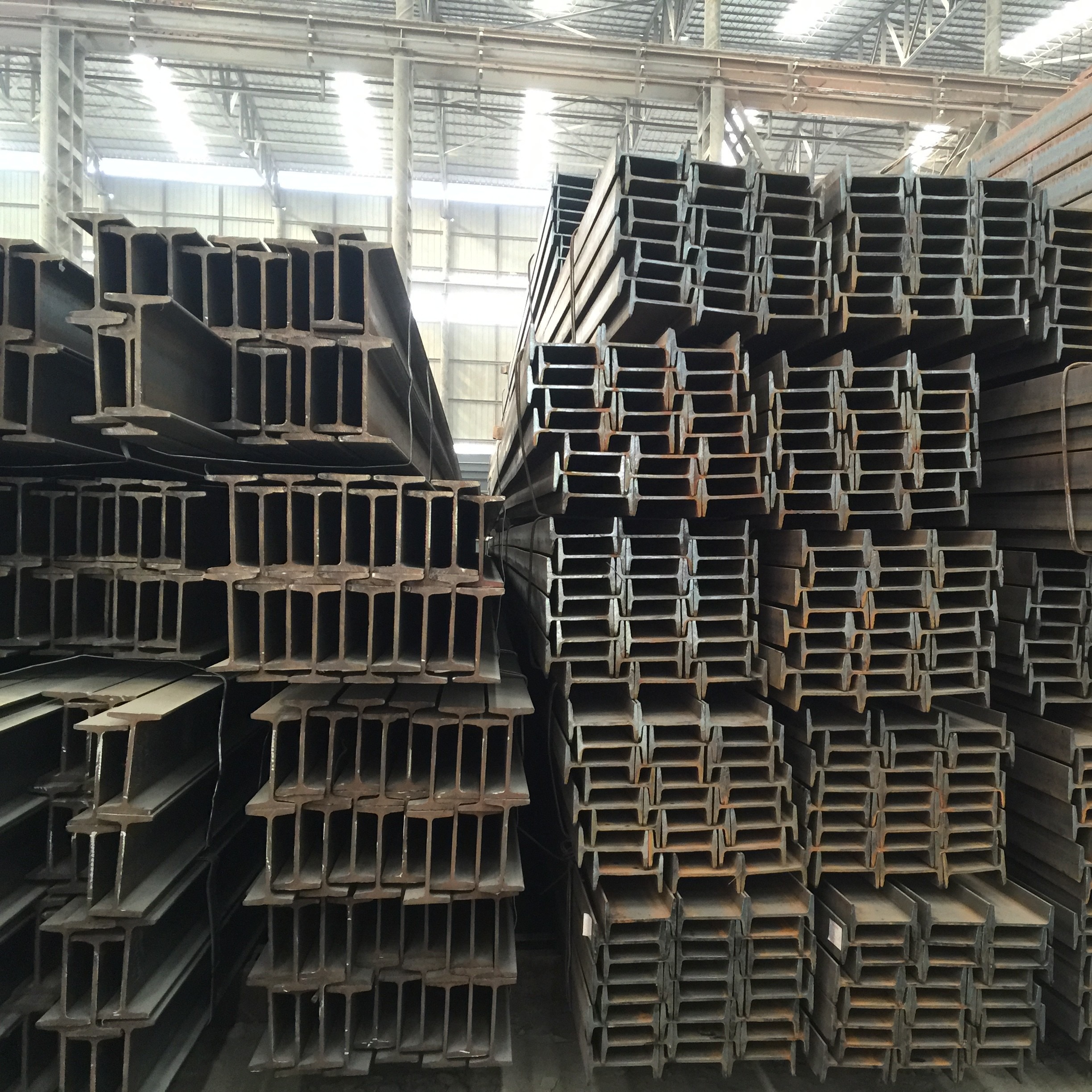

Product Show

ASTM A36 SS400 Rolled Steel Section H Beam Steel Sections For Building 0

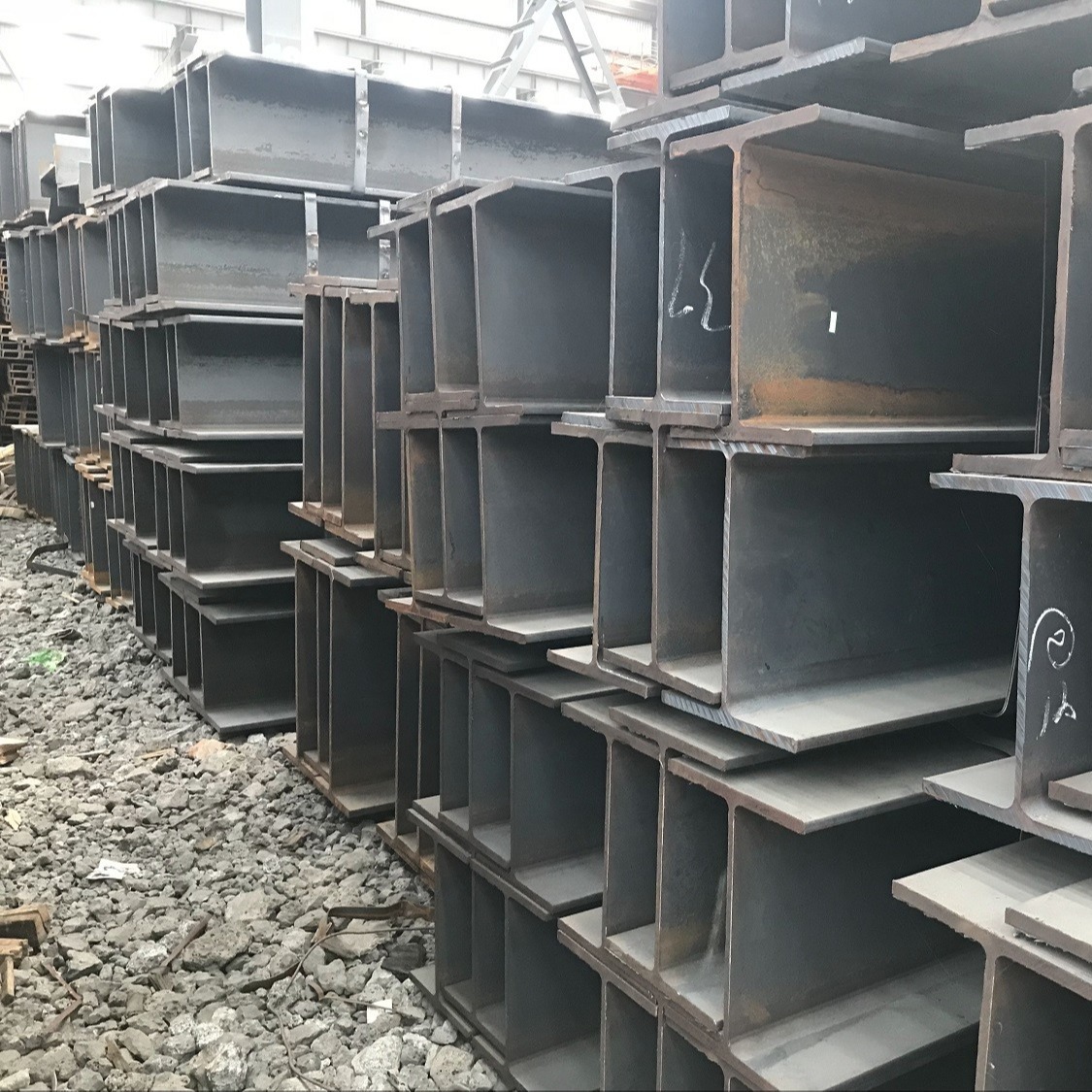

Package & Delivery

ASTM A36 SS400 Rolled Steel Section H Beam Steel Sections For Building 1





Certification

ASTM A36 SS400 Rolled Steel Section H Beam Steel Sections For Building 2



FAQ
Q: Do you provide samples ?How can I get a sample to check your quality? Is it free or extra ?
A: Free samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q: How is the quality of your products?
A: Our products are manufactured strictly according to national and international standard, and we take a test before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.

Q: Are you factory or trader?
A: Our company has been manufacturing and selling steel products for many years since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
