High Hardness ASTM AR500 Wear Resistant Steel Sheet HR NM450 4mm 1250mm Customized Size
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Key Word | Wear Resistant Steel Sheet | Grade | NM450, NM400, NM500,AR500 |
|---|---|---|---|
| Thickness | 4mm-100mm Or As Required | Inspection | We Can Accept The Third Inspection. |
| Sample | Is Avaliable,can Be Provided | Technical Test | Ut Test, Bending Test, Charpy Test |
| Highlight | ASTM Wear Resistant Steel Sheet,AR500 Carbon Metal Steel Plate,0.8mm Wear Resistant Steel Sheet |
||
Product Description
High Hardness ASTM AR500 Wear Resistant Steel Sheet HR NM450 4mm 1250mm Customized Size
Product Information
AR500 is a grade of abrasion resistant (AR) steel plate that is known for its hardness, toughness, and resistance to wear and tear. This grade has one of the highest levels of hardness out of the common AR steel plate grades - with a Brinell Hardness Number (BHN) of between 460-544 - and is typically used in high-wear and impact applications. AR500 steel plate meets ASTM E10 specifications for Brinell hardness testing.
|
Standard grade
|
DIN: XAR300,XAR400, XAR450, XAR500, XAR600;
GB: NM360,NM400,M450,NM500,NM550,NM600,NR360,NR400,B-HARD360,B-HARD400,B-HARD450,KN-55,KN-60,KN-63. |
|
Treatment
|
Quenched&Tempered Steel Plate
|
|
Thickness
|
Common 4~100 mm
|
|
Width
|
Common 10~2500 mm (600~2500 mm)
|
|
Length
|
100~12000 mm, customized
|
|
surface
|
Clean, finishing,blasting and painting according to customer requirement
|
|
Certificate
|
MTC will be provided with goods, third part inspection is acceptable, for example BV,SGS.
|
|
Trading term
|
EXW, FOB, CFR, CIF
|
|
Application
|
Widely used in a variety of architectural and engineering structures,such as
1.) metal constructions such as buildings,bridges,ships; 2.) transmission tower, reaction tower; 3.) lifting transportation machinery; 4.) industrial furnace;boilers 5.) container frame, warehouse goods shelves, etc |

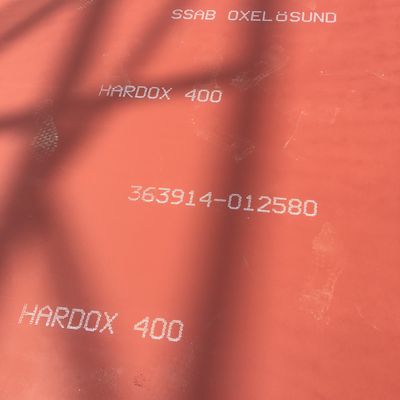

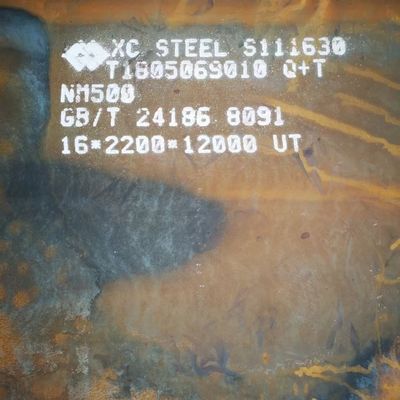

Product Image
Chemical Composition
|
Steel/Grade
|
C
|
Si
|
Mn
|
P
|
S
|
AL
|
Cr+Ni+Mo
|
Nb+V+Ti
|
|
NM360/AR360
|
0.10-0.30
|
0.20-0.40
|
1.00-2.00
|
≤0.015
|
≤0.003
|
≥0.20
|
<0.6
|
|
|
NM400/AR400
|
0.10-0.40
|
0.20-0.40
|
1.00-2.00
|
≤0.015
|
≤0.003
|
≥0.20
|
<0.9
|
|
|
NM450/AR450
|
0.10-0.40
|
0.20-0.40
|
1.00-2.00
|
≤0.015
|
≤0.003
|
≥0.20
|
<1.2
|
|
|
NM500/AR500
|
0.10-0.40
|
0.20-0.45 |
1.00-2.00
|
≤0.015
|
≤0.003
|
≥0.20
|
<1.5
|
|
|
NM550/AR550
|
0.10-0.50
|
0.20-0.45
|
1.00-1.50
|
≤0.015
|
≤0.003
|
≥0.20
|
<2.0
|
|
|
NM600/AR600
|
0.10-0.50
|
0.20-0.45
|
1.00-1.50
|
≤0.015
|
≤0.003
|
≥0.20
|
<2.5
|
Mechanical property
|
Grade
|
Tensile strength
|
Elongation
|
Hardness
|
-20℃ Impact energy
|
|
(Mpa)
|
(%)(min)
|
(HBW)
|
AKv/J (min)
|
|
|
NM360
|
≥1100
|
12
|
330-390
|
24
|
|
NM400
|
≥1200
|
10
|
370-430
|
24
|
|
NM450
|
≥1250
|
7
|
420-480
|
24
|
|
NM500
|
|
|
470(min)
|
|
|
NM550
|
|
|
530(min)
|
|
|
NM600
|
|
|
570(min)
|
|
Recommend Products
Application
Certificate
Package & Shipping
FAQ
Q1: Can you send samples?
A: Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2: What product information do I need to provide?
A: Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3: It's my first time to import steel products, can you help me with it?
A: Sure,we have agent to arrange the shipment, we will do it together with you.
Q4: What ports of shipment are there?
A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5: What about product prices information?
A: Prices various according to periodic price changes of raw materials.
Q6: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
