20x20 Black Rectangular Steel Tube 6m Q195 Welded Square Pipe

  • 20x20 Black Rectangular Steel Tube 6m Q195 Welded Square Pipe
  • 20x20 Black Rectangular Steel Tube 6m Q195 Welded Square Pipe
Place of Origin China
Brand Name ANSTEEL
Certification ASTM,JIS,EN,DIN,GB, JIS
Model Number Q195 Q215A Q215B Q235A Q235B Q235C Q235D Q345A Q345B Q345C Q345D Q345E
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Seaworthy packing for exporting
Delivery Time 7-10 days
Payment Terms L/C, T/T, Western Union
Supply Ability 50000 Tons/Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Length 6m, 6M 9M 12M Or Customized Tolerance ±5%
Technical Hot/Cold Rolled Invoicing By Theoretical Weight
Application Structure Pipe Delivery Time 7-20 Days
Highlight

Welded Rectangular Steel Square Tube

,

20x20 Black Rectangular Steel Tube

,

6m Rectangular Steel Square Tube
Leave a Message
Product Description

20x20 Steel Black Rectangular Q195 Q215A Q215B Q235A Q235B Q345 Welded Square Tube



Product Introduction



This materials used in the manufacture of anchor bolt, plough share, pipe, roof panel, rivets, low carbon steel wire, sheet, pipe, rod, hook, bracket, the welding structure, etc.Rolled plate and wire rod.Cold, hot rolled steel sheet, and as the original plate made of zinc, tin and plastic composite sheet steel used in roof board, decorating plate, packaging containers, steel drum, general gas piping, instrument shell, switch box, shield, train car, etc.Mild steel wire rod is much cold drawn into wire or through galvanized galvanized low carbon steel wire, used for bundling, tensioning fixed or used for wire mesh, rivets, etc.



Item 20x20 Steel Black Rectangular Q195 Q215A Q215B Q235A Q235B Q345 Welded Square Tube
Size Dimension 15*15mm-1000*1000mm
Wall Thickness 0.8-20mm.
Steel material

Q195 → Grade B, SS330,SPHC, S185

Q215 → Grade C,CS Type B,SS330, SPHC

Q235 → Grade D,SS400,S235JR,S235JO,S235J2

Q345 → SS500,ST52
Standard

BS1387,EN10297,BS6323,BSEN10217,GB/T13793-1992,

GB/T14291-2006,GB/T3091-1993,GB/T3092-1993,

GB3640-88,ASTM A53/A36,EN39/EN10219,API 5L,

GB/T9711.1-99 etc
Section shape Round/Square/Rectangular
Type Welded Pipe
Technique

Electronic Resistance Welded (ERW )

Electronic Fusion Welded (EFW)

Double Submerged Arc Welded (DSAW)
Ends 1)Plain End Free From Burr
Class A test pressure 4.83MPa-13.10Mpa
Package

1.Big OD:in bulk

2.Small OD:packed by steel strips

3.woven cloth with 7 slats

4.plastic bags

5.as per customer's option
Application

1)low pressure liquid delivery such as water,gas and oil

2)construction
Delivery

1) Container

2) Bulk carrier
Port of Shipment Shanghai, China
Date of Delivery According To The Quantity And Specification Of Each Order
Payment L/C T/T



Grade C Si Mn P S Cr Ni Cu
Q195 0.06~0.12 ≤0.03 0.25~0.50 ≤0.045 ≤0.050 ≤0.30 ≤0.30 ≤0.30
Q215A 0.09~0.15 ≤0.30 0.25～0.55 ≤0.045 ≤0.050 ≤0.30 ≤0.30 ≤0.30
Q215B 0.09~0.15 ≤0.30 0.25～0.55 ≤0.045 ≤0.045 ≤0.30 ≤0.30 ≤0.30
Q235A 0.14~0.22 ≤0.30 0.30～0.65 ≤0.045 ≤0.050 ≤0.30 ≤0.30 ≤0.30
Q235B 0.12~0.20 ≤0.30 0.30~0.70 ≤0.045 ≤0.045 ≤0.30 ≤0.30 ≤0.30
Q235C ≤0.18 ≤0.30 0.35~0.80 ≤0.040 ≤0.040 ≤0.30 ≤0.30 ≤0.30
Q235D ≤0.17 ≤0.30 0.35~0.80 ≤0.035 ≤0.035 - - -
Q345A ≤0.55 1.00~1.60 ≤0.045 ≤0.045 - - - -
Q345B ≤0.55 1.00~1.60 ≤0.040 ≤0.040 - - - -
Q345C ≤0.20 ≤0.55 1.00~1.60 ≤0.035 ≤0.035 - - -
Q345D ≤0.18 ≤0.55 1.00~1.60 ≤0.030 ≤0.030 - - -
Q345E ≤0.18 ≤0.55 1.00~1.60 ≤0.025 ≤0.025 - - -



Grade Steel thickness( mm) Yield Point(MPa) Tensile Strength(MPa)
Q195 ≤16 (195) 315~390
Q215A ≤16 215 335~410
Q215B ≤16 215 335～410
Q235A ≤16 235 375～460
Q235B ≤16 235 375~460
Q235C ≤16 235 375~460
Q235D ≤16 235 375~460
Q345A ≤16 345 470~630
Q345B ≤16 345 470~630
Q345C ≤16 345 470~630
Q345D ≤16 345 470~630
Q345E ≤16 345 470~630


Product Show

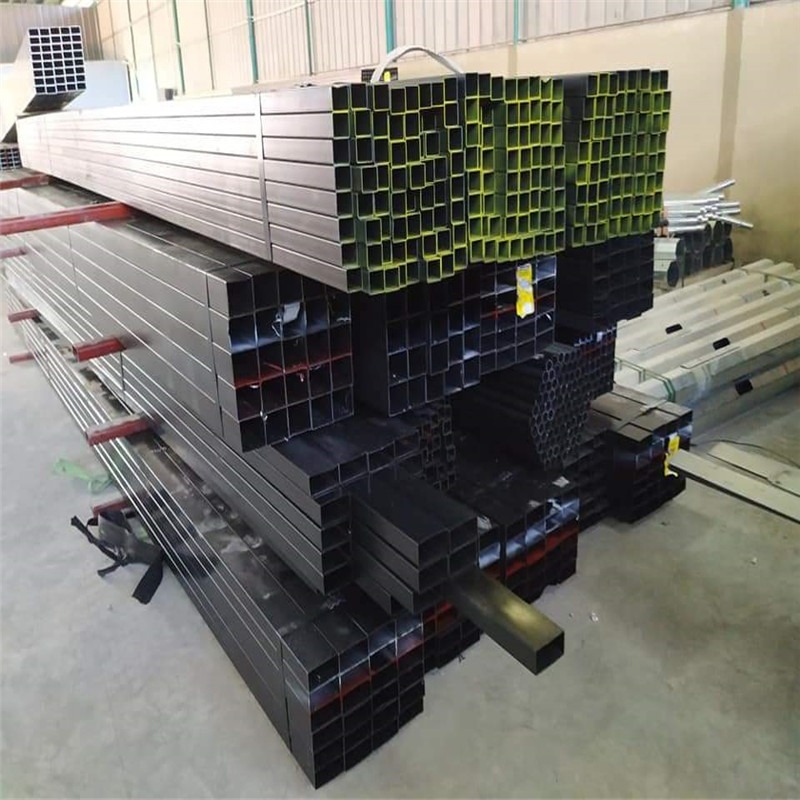

20x20 Black Rectangular Steel Tube 6m Q195 Welded Square Pipe 0
