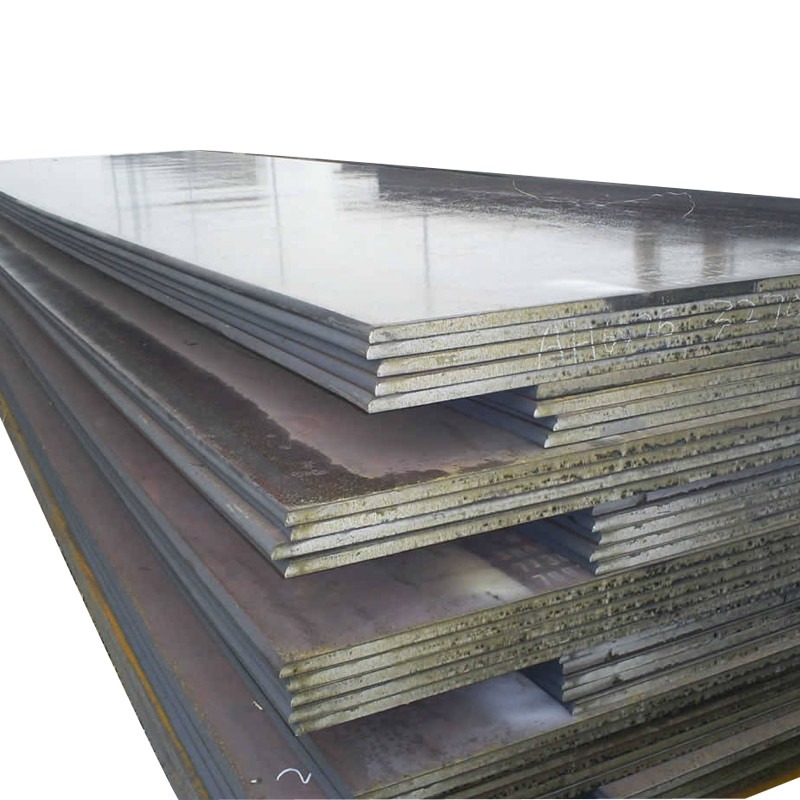

NM500 Wear Resistant Steel Sheet 2500mm Brinell Hardnes Plate
| Place of Origin | China |
|---|---|
| Brand Name | ANSTEEL |
| Certification | ASTM,JIS,EN,DIN,GB, JIS |
| Model Number | NM360 NM400 NM450 NM500 |
| Minimum Order Quantity | 1Ton |
| Price | Negotiable |
| Packaging Details | Seaworthy packing for exporting |
| Delivery Time | 7-10 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50000 Tons/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | NM360 NM400 NM450 NM500 | Surface Treatment | Coated, Oiled Or As Required |
|---|---|---|---|
| Length | 1000mm-12000mm | Width | 1000mm-2500mm |
| Thickness | 2mm-150mm | Hardness | 360 400 450 500HB |
| Special Use | Cutting Tools, Measuring Tools, Cutters In Common Steel, High-strength Steel Plate, Wear Resistant Steel, Silicon Steel | Application | Boiler Plate, Container Plate,Flange Plate,Ship Plate |
| Highlight | 2500mm Steel Sheet,NM500 Wear Resistant Steel Sheet Plate,Brinell Hardness Steel Plate |
||
Product Description
Prime Abrasion Performance Wear Resistant Steel Plate Brinell Hardnes Steel Plate Sheet/NM400 NM500
Product Introduction
Wear resistant steel plate by low carbon steel and alloy wear-resisting layer of two parts, alloy wear-resisting layer is commonly 1/3 ~ 1/2 of total thickness.Work provided by the substrate resistance comprehensive properties such as strength, toughness and plasticity of the force, provided by the alloy wear-resisting layer wear-resisting performance meet the demand of specified conditions.
| Item | Prime Abrasion Performance Wear Resistant Steel Plate Brinell Hardnes Steel Plate Sheet/NM400 NM500 |
| Specifications |
Width : 10mm~3500mm Thickness : 0.3mm~500mm Length : 2m,2.44m,3m,6m,8m,12m, or as required. |
| Material | Chinese: NM360, NM400, NM450, NM500, NM550, NM600,NM700 Q345(A/B/C/D/E), Q390(B/C/D/E), Q420(B/C/D/E), Q460(C/D/E), Q550(C/D/E), Q620(C/D/E), Q690(B/C/D/E), Q890(C/D), 27MnTiB, DB200, 22SiMn2, Germany: Xar400 ,Xar450,Xar500,Xar550,Xar600 Finland:
RAEX400,RAEX450,RAEX500
|
|
Hardness
|
360 400 450 500HB
|
| Size Tolerance | ±1%-3% |
| Processing method | Bending, Welding, Decoiling, Cutting, Punching, Polishing or as customer's request |
| Technology | Hot roll, cold roll, cold drawn, ect. |
| Surface | Mild steel plain finish, hot dip galvanized, pre galvanized, color coated, ect. |
Chemical Composition
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni | B |
| NM360 | ≤0.25 | ≤0.70 | ≤1.30 | ≤0.025 | ≤0.010 | ≤1.4 | ≤0.50 | ≤1.00 | ≤0.004 |
| NM400 | ≤0.25 | ≤0.70 | ≤1.60 | ≤0.025 | ≤0.010 | ≤1.4 | ≤0.50 | ≤1.00 | ≤0.004 |
| NM450 | ≤0.26 | ≤0.7 | ≤1.6 | ≤0.025 | ≤0.01 | ≤0.5 | ≤1.5 | ≤0.8 | ≤0.004 |
| NM500 | ≤0.38 | ≤0.70 | ≤1.70 | ≤0.020 | ≤0.010 | ≤1.20 | ≤0.65 | ≤1.00 | 0.005-0.006 |
| Grade | Tensile Strength(MPa) | Elogation(%) | (-20)AKV(J) | Hardness(HB) |
| NM300 | 1000(min) | 14(min) | 24(min) | 270-330 |
| NM360 | 1100(min) | 12(min) | 24(min) | 330-390 |
| NM400 | 1200(min) | 10(min) | 24(min) | 370-430 |
| NM450 | 1250(min) | 7(min) | 24(min) | 420-480 |
| NM500 | - | - | - | 470(min) |
| NM550 | - | - | - | 530(min) |
| NM600 | - | - | - | 570(min) |
Product Show
Packaging Details
1. Sheets covered with wooden plate for protection in transportation.
2. All sheets will be loaded in strong wooden packages.
3. Every cartons loaded with good shoring and strengthening.
4. Take container loading pictures and seal the container.
5. Transportation speed is quick. And keep customer each step informed.
Shipping
About Company
Our company was established in 2012 and located in Wuxi, the largest steel distribution center in East China.
The company has 20,000 square meters of indoor storage, with an annual output of 12,000 tons. The main customer groups involve Southeast Asia, the Middle East, Europe, Africa, North America, Oceania, etc. Since its establishment, the company has been committed to providing customers with high-quality steel and has become a leading supplier of comprehensive material solutions in China.
Products cover steel structure engineering, nuclear power engineering, marine engineering, construction and bridge engineering, construction machinery and equipment production, metallurgical equipment production and other fields.
We adherence to the "restraining men talent concept, with first-class service, first-class products, a comprehensive build the company's core competitiveness, to provide the most valuable industry services, is committed to become china's best solution steel sales company.
