AISI Wear Resistant Steel Plate Nm500 Ar400 500hb Hb400 Hardo450 1.3401 Nm400 Iron

  • AISI Wear Resistant Steel Plate Nm500 Ar400 500hb Hb400 Hardo450 1.3401 Nm400 Iron
  • AISI Wear Resistant Steel Plate Nm500 Ar400 500hb Hb400 Hardo450 1.3401 Nm400 Iron
  • AISI Wear Resistant Steel Plate Nm500 Ar400 500hb Hb400 Hardo450 1.3401 Nm400 Iron
  • AISI Wear Resistant Steel Plate Nm500 Ar400 500hb Hb400 Hardo450 1.3401 Nm400 Iron
Place of Origin China
Brand Name ANSTEEL
Certification ISO9001
Model Number NM400 NM450 NM600
Minimum Order Quantity 1ton
Price Negotiable
Packaging Details Seaworthy Standard Package
Delivery Time 5-8 work days
Payment Terms L/C, T/T
Supply Ability 5000 tons per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Length Range 2500mm 3000mm 5800mm 6000mm Tolerance 0.1-0.25mm
Width Range 1000mm 1200mm 1500mm 1800mm 2000mm Processing Bending, Welding, Decoiling, Punching, Cutting
Type Wearing Plate Trade Terms FOB,EXW,CIF,CRF
Highlight

nm400 wear resistant steel plate

,

aisi wear resistant steel plate

,

nm500 abrasion resistant steel plate
Leave a Message
Product Description

Hard400 Steel Plate Hard500 Steel Sheet Nm500 Ar400 500hb Hb400 Hardo450 1.3401 Wear Resistant Steel Plate Nm400 Iron

Product Specification



Product Name wear resistant steel plate
Standard AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.
Material NM360,NM400,NM450,NM500
AR400,AR450,AR500,AR550
HARDO400,HARDO450,HARDO500,HARDO600
XAR400,XAR450,XAR500,XAR600
QUARD400,QUARD450,QUARD500
FORA400,FORA500
RAEX400,RAEX450,RAEX500
EH360, EH400,EH500
DELLIDUR400V,DELIDUR450V ,DILLDUR500V ,DILLIDUR550V
Technique Hot Rolled
Size Thickness:3-300mm or as required
width:600-2200mm or as required
Length:1000-12000mm or as required
Application Widely used in construction machinery, mining machinery, coal mining machinery, environmental protection machinery, metallurgical machinery and other parts. Excavator, loader, bulldozer bucket plate, blade plate, side blade plate, Crusher liner etc.
Payment term 1) 30% TT in advance, 70% the balance against B/L copy;
2) Irrevocable 100% L/C at sight.
Delivery time 7-15 days afetr received deposit.
Package Waterproof paper+iron strip or standard export seaworthy package with, suit for all kinds of transport, or as required.



Chemical Composition



Grade C Cr Ni Mo
NM360 0.25 0.8 0.5 0.5
NM400 0.3 1 0.7 0.5
NM450 0.35 1.1 0.8 0.55
NM500 0.38 1.2 1 0.65
NM600 0.45 1.5 1 0.8
Hardo400 0.22 0.8 0.5 0.25
Hardo450 0.25 0.5 0.25 0.25
Hardo500 0.29 1 1 0.6



Grade Tensile strength
(Mpa)		 Elongation
(%)(min)		 Hardness
(HBW)		 -20ºC Impact energy
AKv/J (min)
NM300 ≥1000 ≥14 270-300 ≥24
NM360 ≥1100 ≥12 330-390 ≥24
NM400 ≥1200 ≥10 370-430 ≥24
NM450 ≥1250 ≥7 420-480 ≥24
NM500 ≥1250 ≥7 ≥470 ≥24
NM550 ≥1250 ≥7 ≥530 ≥24
NM600 ≥1250 ≥7 ≥570 ≥24



Grade Yield strength
(Mpa)		 Hardness
(HB)		 -40ºC Impact energy
AKv/J (min)
HARDO400 900-1100 370-430 50
HARDO450 1100-1300 420-480 45
HARDO500 1250-1400 470-540 37
HARDO550 1250-1400 520-580 30
HARDO600 1250-1400 550-640 30

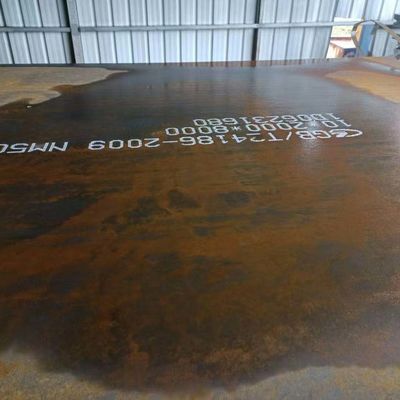

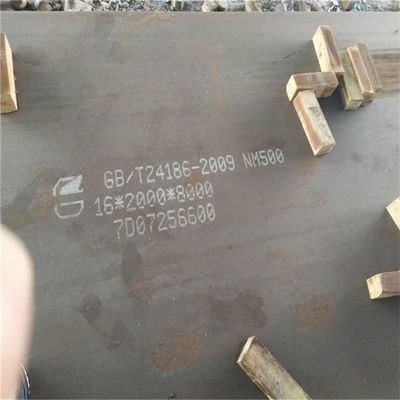

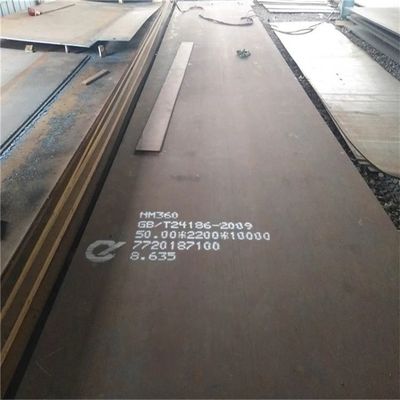

Product Image
 AISI Wear Resistant Steel Plate Nm500 Ar400 500hb Hb400 Hardo450 1.3401 Nm400 Iron 0

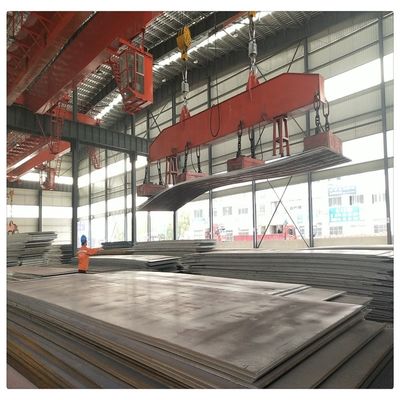

Packing&Shipping

AISI Wear Resistant Steel Plate Nm500 Ar400 500hb Hb400 Hardo450 1.3401 Nm400 Iron 1

Certificaion
AISI Wear Resistant Steel Plate Nm500 Ar400 500hb Hb400 Hardo450 1.3401 Nm400 Iron 2
